Ant250-3D Carving Duplicator |
|
TECNICAL DETAILS:
The bearing rod is 25 mm diameter induction chromium plated hardened steel shaft.
Brake system for stability and control.
25mm diameter induction chromium plated steel shafts for side rails.
Steel Finish :Electronic static paints

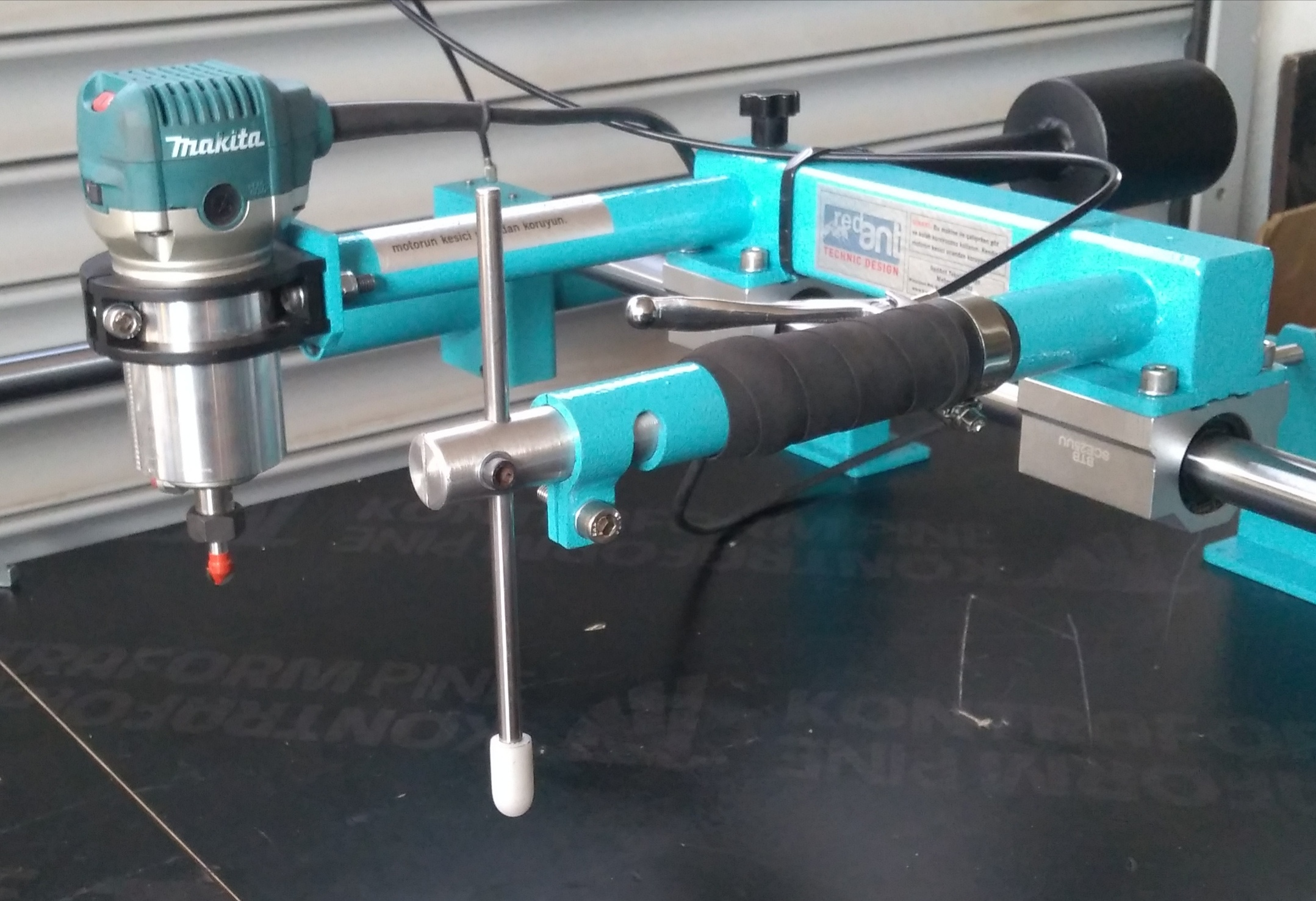

ROUTER: Makita RT 0700 C
Input Watt = 710 w
COLLEC CAPPACITY = 6mm and 8mm
Speed = 10000 - 30000 rpm
ROUTER BITS : 5 pieces in different sizes
STYLUS : 5 pieces paired with router bits .
ROTARY CARVING APPARATUS:
Width capacity: 230mm dia
CHASSIS: HRP Stell.
Synchronous rotation system: steel sprocket and chain.
DIMENIONS:
Carving Area: 80 cm L x 23 cm Diameter.(optionally scalable)
TABLE TOP SIZE: 80 cm W x 150 cm L (table not included)
RAIL LENGTH: 120 cm.
Weight:40 kg
|
|
|
|
|
|
|
|
|
|
